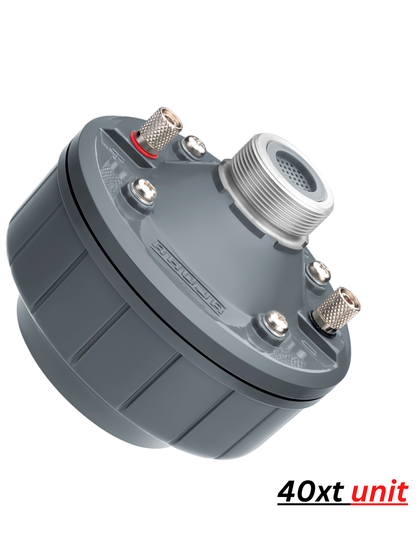

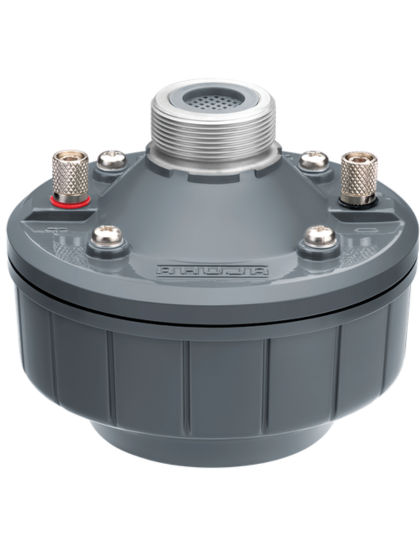

Ahuja AU-40 PA Driver Unit (40 Watts, 16 Ohms)
Ahuja AU-40 PA Driver Unit (40 Watts, 16 Ohms)
₹1,750.00
₹2,000.00
13% OFF
✓ In Stock (99 available)
Specifications
- SKU Code
- PRD-866CC634
- HSN Code
- 85182900
- Weight
- 1720
The Ahuja AU-40 is a rugged, professional-grade PA driver unit engineered to deliver high sound pressure levels (SPL) with exceptional clarity and crisp voice penetration over wide outdoor distances. Constructed with a weather-proof die-cast aluminum acoustic head, this unit is built to withstand harsh outdoor environments. It features a precision-wound voice coil on a specialized aluminum bobbin to manage continuous power and maximize heat dissipation during prolonged operations. Perfect for installation in temples, mosques, public announcement setups, election campaigns, and commercial sound setups when paired with reflex horn speakers.Input Power: 40W RMS / 60W Max Impedance: 16 Ohms ($\Omega$)Frequency Response: 160Hz to 7,000HzSound Pressure Level (SPL at 1kHz): 112.5dB / 1W / 1mMaterial: Premium Die-cast Aluminium Acoustic HeadOperating Temperature Range: -30°C to +70°C
High Audio Efficiency: Delivers a potent 40W RMS of continuous power and up to 60W Max, generating loud, highly clear sound distribution. Weatherproof Protection: Certified with an IP66 rating when properly fitted onto a standard reflex horn, rendering it dust-proof and protected against high-pressure water jets. Advanced Thermal Management: Voice coils are expertly wound on an aluminum bobbin to provide rapid heat dissipation, significantly preventing overheating and extending driver life. Heavy-Duty Construction: Built using a tough, corrosion-resistant die-cast aluminum acoustic flange for maximum outdoor structural integrity. Universal Fitting Support: Standard throat coupling design (1-3/8" - 18 TPI) ensures broad compatibility with standard PA喇叭 / horn units.
Brand: AHUJA Product Type: PA Compression Driver UnitEnclosure Rating: Meets international EN 60529 standard for outdoor ingress protection.Terminal Type: Dual color-coded metallic terminals (Red for positive, Black for negative) for quick and reliable bare-wire screw connections.Compatibility: Integrates perfectly with standard outdoor horn bells (e.g., 15", 18", 21" models).
